The long-term reliability of high-voltage transmission lines relies heavily on the structural and dielectric integrity of composite insulator weather sheds. Minor imperfections during the molding process compromise the hydrophobicity and tracking resistance of the material. This leads to accelerated aging, partial discharge, and eventual catastrophic failure in the field. Addressing these vulnerabilities requires a rigorous evaluation of molding techniques, tooling design, and process parameters. You must eliminate defects at the manufacturing stage to ensure compliance with stringent utility standards and accurately predict long-term degradation mechanisms. We see too many production runs fail because of poor venting or incorrect temperature profiles. Fixing these issues demands a hard look at the factory floor realities. You need to align material rheology with machine capabilities. This guide breaks down the exact manufacturing flaws, their root causes, and the specific mitigation strategies required to produce defect-free components.
Molding defects such as voids, flash, and poor core adhesion directly degrade the electrical and mechanical lifespan of composite insulators.
Root causes typically stem from a misalignment between material rheology (HTV vs. LSR), mold venting, curing parameters (temperature/pressure), and mold release application.
Evaluating a manufacturing process or partner requires auditing their tooling precision, flash mitigation strategies, aging evaluation methods, and post-cure inspection protocols.
Balancing cycle time with optimal cure states is the primary trade-off when scaling production without sacrificing quality.
Before identifying defects, manufacturers must establish the baseline performance metrics that dictate field reliability. High-voltage environments subject materials to continuous electrical stress, severe weather, and environmental contaminants. Meeting these demands requires strict adherence to physical and electrical property standards. You cannot troubleshoot a manufacturing process without first understanding what the final polymer must withstand on a 400kV transmission tower.
Flawless insulator silicone rubber must meet stringent dielectric requirements to prevent dry-band arcing. High dielectric strength ensures the material can withstand intense electrical fields without breaking down. Tracking resistance prevents the formation of conductive carbon paths on the surface during prolonged exposure to electrical stress and surface moisture. Any internal void or surface irregularity acts as a catalyst for partial discharge. When moisture and pollution create a conductive film on the insulator, leakage currents flow. As this moisture evaporates, dry bands form, causing high-voltage arcs to jump across the dry gaps. The polymer must resist the intense heat of these arcs without carbonizing.
Composite insulators endure significant mechanical stress during transportation, installation, and decades of high wind loads. The weather sheds require exceptional tear strength and elongation properties. High tear strength prevents the propagation of micro-cracks initiated by handling or environmental debris. Adequate elongation allows the sheds to flex under wind and ice loads without detaching from the central core. A fully cured, homogeneous polymer matrix provides this necessary mechanical resilience. If the material is under-cured, it lacks the tensile strength to survive the cantilever loads applied when linemen rig the lines.
The primary advantage of silicone over traditional porcelain or glass is its ability to maintain and transfer hydrophobicity. A smooth, defect-free surface finish dictates the material's ability to repel water over decades of outdoor exposure. Low molecular weight (LMW) siloxanes migrate from the bulk of the polymer to the surface, encapsulating dirt and pollution to maintain a non-wetting state. Surface blemishes, flow marks, or contamination from mold release agents disrupt this migration. This leaves localized areas vulnerable to water filming and leakage currents. The chemical structure of polydimethylsiloxane (PDMS) drives this recovery, but physical surface defects block the migration pathways.
Baseline testing must account for accelerated aging mechanisms that actively exploit microscopic molding flaws over time. UV exposure, corona discharge, extreme temperature fluctuations, and chemical pollutants degrade the polymer chains. A properly molded part exhibits uniform cross-linking density, offering maximum resistance to these environmental stressors. Testing protocols subject samples to accelerated weathering chambers to verify that the material formulation and curing process yield a product capable of a 30-plus year service life. If the cross-linking is uneven due to poor temperature control in the mold, the weaker areas will chalk and crack within the first five years of deployment.
Performance Metric | Baseline Requirement | Impact of Molding Defects |
|---|---|---|
Dielectric Strength | > 20 kV/mm | Voids cause partial discharge and premature electrical breakdown. |
Tear Strength | > 15 kN/m | Surface cracks propagate into deep tears under wind loads. |
Hydrophobicity | HC1 - HC2 Classification | Surface blemishes trap moisture, leading to dry-band arcing. |
Core Adhesion | Cohesive failure during peel test | Delamination allows moisture ingress and internal flashover. |
Tracking Resistance | Pass 4.5kV inclined plane test | Contamination traces lead to rapid carbonization and tracking. |
Identifying defects early in the production cycle prevents compromised units from reaching the field. Each type of physical flaw carries specific consequences for the long-term operational safety of the transmission line. Factory inspectors must know exactly what to look for and understand the physics behind why a seemingly minor visual flaw causes a catastrophic grid failure.

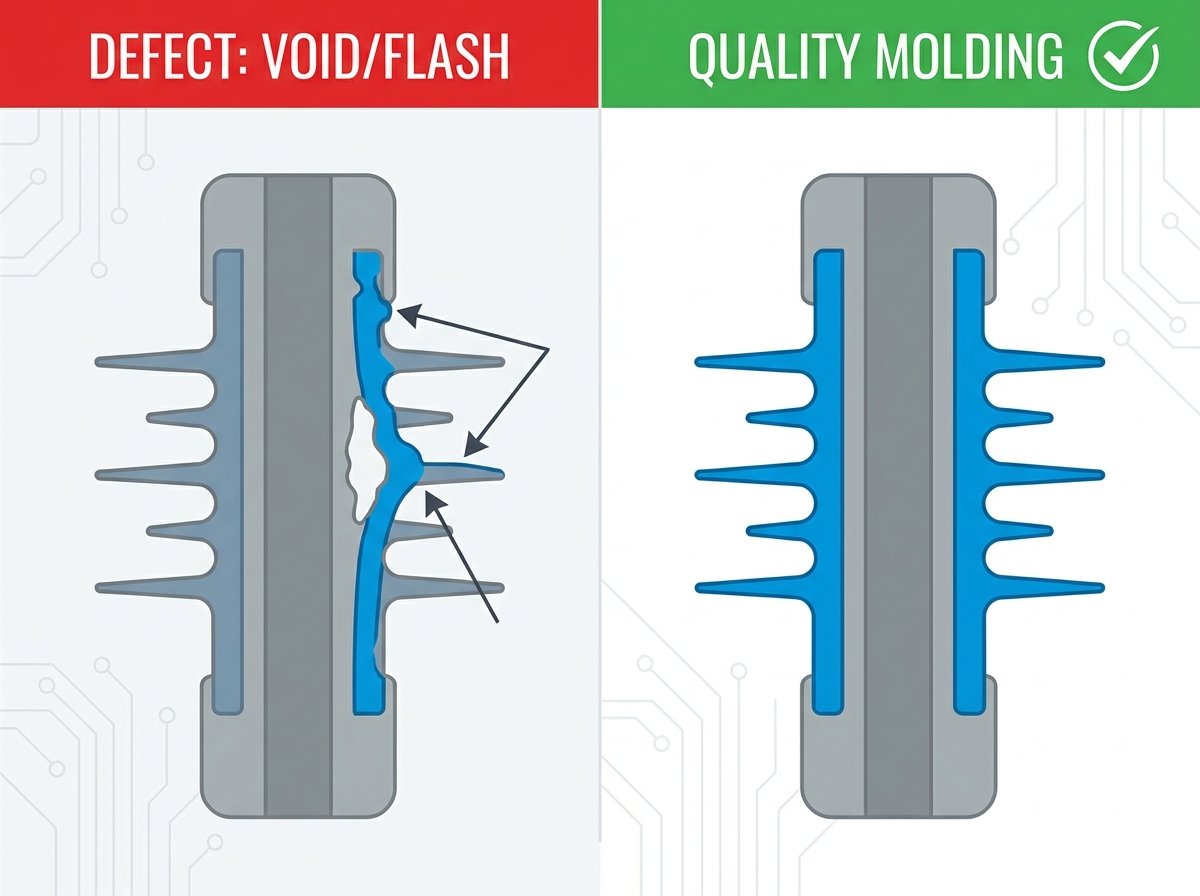

Excess material seeping out along the mold's parting line or at the edges of the umbrella skirt is known as flash. While often considered a cosmetic issue in general rubber molding, flash on high-voltage equipment is a severe functional defect. It creates localized areas for moisture and contaminant accumulation. As pollution builds up along these irregular ridges, it accelerates surface aging and provides a direct path for electrical tracking across the shed profile. Furthermore, the manual trimming process used to remove flash often results in operators accidentally scoring the shed surface with knives, creating mechanical stress concentrators.
Internal or surface-level cavities occur when air is trapped during injection, moisture vaporizes during the cure cycle, or volatile byproducts fail to escape the mold. These voids act as focal points for partial discharge. The localized electrical stress inside a void ionizes the trapped gas, bombarding the surrounding polymer walls with electrons. This significantly lowers the dielectric strength of the insulator and accelerates internal degradation, eventually burning a hole through the shed. According to Paschen's Law, the breakdown voltage of the gas inside the void is much lower than the surrounding solid dielectric, making these air pockets highly dangerous.
Short shots present as missing sections of the umbrella skirt, variations in shed thickness, or inconsistent creepage profiles. This happens when the material fails to fill the entire mold cavity before curing begins. Dimensional inconsistencies alter the designed creepage distance and the aerodynamic profile of the insulator. This compromises the insulator's performance in heavy rain or highly polluted environments, as the intended water-shedding geometry is deformed. A reduced creepage distance directly violates utility specifications and increases the probability of flashover during wet conditions.
Micro-fissures, weakness, or physical tears frequently occur at the base of the sheds or along the main channel during the demolding process. Pulling a complex, undercut geometry out of a hot mold places immense strain on the material. Tearing reduces the mechanical strength of the shed and exposes the internal matrix to environmental degradation. Moisture ingress through these cracks can reach the core interface, leading to catastrophic structural failure. The material's "green strength" at demolding temperatures is much lower than its final cured strength, making it highly susceptible to mechanical damage.
Visible lines, discoloration, dull spots, or traces left on the surface of the molded product indicate flow interruptions or contamination. These blemishes alter the surface energy of the insulator silicone rubber, reducing localized hydrophobicity. A dull or rough patch provides a foothold for pollution accumulation. Over time, these contaminated zones become hydrophilic, allowing continuous water films to form and increasing the risk of flashover. Flow marks also indicate areas of high shear stress during injection, which can result in localized mechanical weakness.
Delamination or weak bonding between the housing and the fiberglass reinforced plastic (FRP) core is the most critical failure mode for composite insulators. The interface between the core and the rubber must be completely void-free and chemically bonded. Poor adhesion allows moisture ingress into the core. This moisture, combined with high electrical stress, leads to brittle fracture of the fiberglass rod or internal flashover, causing the line to drop. The silane coupling agents used to prime the core require precise application and hydrolysis to form a covalent bond with the silicone matrix.
Tracing defects back to their origin requires an understanding of material science, fluid dynamics, and thermodynamics. Manufacturing flaws rarely result from a single error; they usually stem from a combination of suboptimal parameters. You have to look at the entire system, from the pumping station to the mold heaters, to find the root cause.

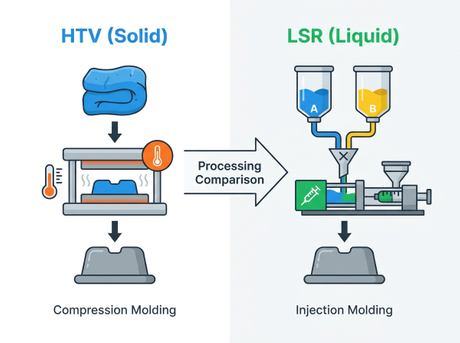

The choice between High-Temperature Vulcanizing (HTV) silicone and Liquid Silicone Rubber (LSR) fundamentally impacts flow dynamics and injection behavior. HTV has a high viscosity, requiring massive pressure to fill complex molds, which increases the risk of shear stress and incomplete fills. HTV systems rely on heavy stuffers to force the material into the injection barrel. LSR flows much easier but is highly sensitive to flashing if mold tolerances are loose. LSR uses precise meter-mix pumps to combine the A and B components. Improper mixing, expired shelf life, or incorrect catalyst ratios in either material lead to uneven curing, bubbling, and weak mechanical properties. If the cross-linking agents are not dispersed uniformly, the resulting polymer will have localized soft spots prone to tearing.
Inadequate vacuum application or poorly placed vents directly cause air traps and bubbling. As material rushes into the cavity, it displaces air. If that air has nowhere to go, it compresses, heats up, and forms a void. Parting line vent depths must be machined precisely—typically between 0.02mm and 0.05mm—to allow air to escape without letting the silicone flash. Improper gate sizing or runner design contributes to shear stress, flow marks, and incomplete fills. If a gate is too small, the material experiences excessive friction, generating localized heat that can trigger premature curing before the mold is fully packed.
Uneven mold temperature distribution causes localized under-curing, over-curing, or surface cracking. If the core of the mold is cooler than the outer edges, the exterior cures while the interior remains soft, leading to dimensional warping upon demolding. Heater cartridges must be placed strategically to ensure a uniform thermal map across the entire cavity. Insufficient clamping pressure allows the mold halves to separate slightly during injection, leading to excessive flash. Conversely, improper injection pressure causes short shots and dimensional inconsistencies, as the material fails to pack out the extremities of the shed profile.
Mold release agents prevent the cured rubber from sticking to the tooling, but their application requires extreme precision. Excessive application causes the agent to pool in the mold crevices, leading to surface traces, dull spots, and poor surface finish. Insufficient application causes the rubber to adhere to the steel, resulting in severe tearing during demolding. Certain release agents cause chemical interference with the silicone's platinum or peroxide cross-linking process. Platinum catalysts are highly susceptible to poisoning from amines, sulfur, or heavy metals present in the factory environment or in incompatible release agents. This poisoning leaves a sticky, uncured layer on the surface of the insulator.
Eliminating defects requires proactive engineering controls rather than reactive sorting. Implementing robust prevention strategies ensures consistent quality across high-volume production runs. You cannot inspect quality into a product; you must build the process to guarantee it.
Establishing frameworks for dialing in injection speed, holding pressure, and temperature profiles based on the specific silicone grade is mandatory. Engineers must map the rheological curve of the material and align it with the machine's capabilities. Implementing automated process monitoring allows operators to detect pressure drops or temperature anomalies in real-time. Closed-loop control systems automatically adjust injection speeds if they detect variations in material viscosity, ensuring a consistent fill rate and preventing short shots or flash. Operators should utilize cavity pressure sensors to switch from injection velocity control to holding pressure control at the exact moment the mold is full.
Map the thermal profile of the mold using external thermocouples to verify heater cartridge performance.
Establish a multi-stage injection profile to reduce shear stress as the material passes through the gates.
Set holding pressure high enough to compensate for material shrinkage during the cross-linking phase.
Calibrate the vacuum system to achieve a minimum of 50 mbar absolute pressure before initiating injection.
Evaluating the return on investment for high-precision CNC-machined molds with advanced vacuum systems is a required step. Tight-tolerance molds eliminate the gap where flash occurs, while integrated vacuum blocks evacuate the cavity before injection, completely preventing air traps. Standard maintenance schedules for cleaning molds, removing cured residue, and inspecting parting lines prevent progressive tooling degradation. Dry ice blasting is the preferred method to clean hot molds without damaging the surface finish or altering the dimensional tolerances. Abrasive cleaning methods destroy the mold's surface finish, leading to demolding issues and surface blemishes on the final product.
Relying solely on visual inspection is inadequate for high-voltage components. Non-destructive testing (NDT) methods, such as X-ray or ultrasonic inspection, detect internal voids before deployment. These technologies scan the internal matrix and the core interface for microscopic air pockets. Standardized adhesion testing, such as peel tests on sample batches, verifies the chemical bond to the FRP core. Dimensional auditing using laser scanners ensures the creepage distance remains within specification. Accelerated aging evaluations on the production floor confirm that the material formulation retains its hydrophobicity and tracking resistance after curing.
Manufacturers must establish clear thresholds for when a molded part can be reworked and when it must be rejected to prevent field failures. The viability of surface repair materials, such as RTV silicone coatings, for addressing minor cosmetic blemishes depends heavily on utility specifications. While a superficial scratch might be repaired with an approved RTV compound, strict scrap policies must apply to any defect involving internal voids, core adhesion failure, or deep tearing. High-voltage safety compliance dictates that compromised structural integrity cannot be patched. If a void is detected near the core interface, the entire unit must be scrapped.
Defect Type | Primary Root Cause | Immediate Mitigation Action |
|---|---|---|
Internal Voids | Inadequate vacuum or blocked vents | Clean parting line vents and verify vacuum pump pressure. |
Short Shots | Low injection pressure or premature curing | Increase injection speed and check gate temperatures. |
Excessive Flash | Insufficient clamping tonnage | Increase clamp force or check mold for debris holding it open. |
Tearing at Demold | Under-curing or lack of release agent | Extend cure time by 30 seconds and verify mold temperature. |
Engineering a defect-free process involves balancing production efficiency with absolute quality assurance. Factory managers must navigate these trade-offs carefully to maintain throughput without compromising the dielectric integrity of the insulators.
The tension between increasing production throughput and ensuring a complete, homogeneous cross-linking of the polymer is constant. Shorter cure times increase daily output but risk leaving the center of thick shed sections under-cured. Rushing the demolding process increases the risk of tearing, poor demolding at the main channel, and dimensional warping. Operators must determine the exact point at which the material has achieved sufficient green strength to survive demolding without extending the cycle time unnecessarily. Utilizing rheometers to plot the cure curve of the specific silicone batch helps pinpoint the optimal demolding window.
Premium, tightly toleranced molds require a significant upfront capital expenditure. This cost must be evaluated against the long-term savings achieved through reduced flash trimming labor, lower scrap rates, and fewer field replacements. Cheap tooling inevitably warps under high clamping tonnage, leading to runaway flash issues that require manual trimming. Manual trimming introduces human error, often resulting in accidental cuts to the shed profile, which generates further scrap. High-quality molds machined from hardened steel grades eliminate this secondary operation entirely, ensuring a consistent, flash-free parting line.
Executing process improvements on the factory floor introduces logistical and operational challenges. Anticipating these risks ensures a smooth transition to higher quality standards and prevents unexpected downtime.
Contamination or premature cross-linking of raw silicone rubber due to improper temperature or humidity control in storage is a major risk. Uncured silicone absorbs dust, moisture, and chemical vapors from the factory environment, all of which cause bubbling and surface defects during molding. Implement strict FIFO (First-In-First-Out) inventory systems to ensure material is used before its shelf life expires. Climate-controlled storage environments maintain the material at optimal temperatures, preventing the catalyst from activating prematurely. LSR components must be kept sealed in their original drums until connected directly to the pumping system.
Variability in manual demolding techniques or inconsistent application of mold release agents leads to surface defects and tearing. If one shift applies release agent differently than another, defect rates will fluctuate unpredictably. Standardize operating procedures (SOPs) for every step of the molding cycle. Automate demolding where feasible using robotic extractors to ensure consistent pulling force and angles. Implement rigorous operator training programs focused on defect recognition, proper release agent application, and the critical importance of core preparation. Operators must understand that touching the primed FRP core with bare hands transfers oils that will cause adhesion failure.
Conduct a thorough audit of current scrap rates to identify the most frequent defect types and their locations on the insulator profile.
Initiate material flow analysis for existing molds to pinpoint areas of high shear stress or inadequate venting.
Establish a baseline for acceptable flash, void, and surface blemish tolerances based strictly on utility specifications and international standards.
Upgrade storage facilities to ensure climate-controlled, FIFO inventory management for all raw silicone materials.
A: Bubbling happens when air gets trapped in the mold cavity due to inadequate venting or a lack of vacuum application. It also occurs when moisture vaporizes during the high-temperature cure cycle. If operators inject the material too quickly, or if mold temperatures are set too high, the surface seals prematurely. This traps volatile byproducts inside the polymer matrix, forming internal voids that eventually cause partial discharge in the field.
A: Flash creates irregular ridges along the parting line that trap moisture, dirt, and industrial pollution. This localized contamination disrupts the material's hydrophobicity, allowing continuous water films to form. These films facilitate leakage currents, leading to dry-band arcing, surface tracking, and accelerated aging of the silicone rubber.
A: HTV has a high viscosity, requiring massive injection pressure, which can cause shear stress and short shots if not controlled. LSR flows easily, reducing short shots but increasing the risk of flash if mold tolerances are loose. Both require precise temperature control and proper mixing to prevent curing defects and ensure mechanical strength.
A: Tearing is prevented by ensuring the silicone is fully cured to achieve adequate green strength before opening the mold. Operators must apply the correct amount of mold release agent and optimize the mold design to eliminate sharp undercuts. Automated demolding equipment also helps by applying consistent, even pulling force rather than manual yanking.
A: Adhesion failure usually results from improper surface preparation of the FRP core, such as inadequate cleaning or uneven application of the silane coupling agent. It can also occur if the core is not pre-heated correctly, causing the silicone to cure too rapidly at the interface, which prevents a strong chemical bond from forming.
A: Standard methods include visual inspection for flash and surface blemishes, dimensional auditing for creepage consistency, and peel tests for core adhesion. Advanced non-destructive testing (NDT), such as X-ray or ultrasonic scanning, is used to detect internal voids and verify the integrity of the core-housing interface before the unit is shipped.
