The transition of high-voltage substations and transmission networks from traditional ceramic materials to polymer alternatives is driven by the need for higher reliability in increasingly severe environmental conditions. Grid operators and utility engineers face escalating maintenance demands, pollution-induced flashovers, and seismic vulnerabilities when relying on legacy insulation systems. Selecting the wrong polymer housing material leads to premature aging, electrical tracking, and catastrophic electrical failure.
With over six decades of operating experience and material evolution in high-voltage environments, silicone rubber has transitioned from an experimental alternative to the definitive industry standard for mitigating pollution and environmental stress. The long-term viability of a polymer insulator depends entirely on its external sheath. This guide examines the material science, operational realities, and procurement criteria dictating why silicone rubber is the premier housing for composite post insulators.
Hydrophobicity Transfer: Silicone rubber is uniquely capable of transferring its water-repellent properties to surface contaminants, drastically reducing leakage currents and pollution flashovers.
Material Formulation Matters: Not all silicone is equal; High Temperature Vulcanized (HTV) silicone rubber heavily loaded with Aluminum Trihydrate (ATH) is required for optimal tracking and erosion resistance.
Lifecycle Cost Reduction: While initial procurement costs may vary, silicone rubber composite insulators eliminate the need for routine washing and offer superior seismic performance compared to porcelain.
Critical Failure Modes: Procurement evaluation must focus on the core-to-housing bonding process and silicone content validation to mitigate risks of moisture ingress and premature degradation.

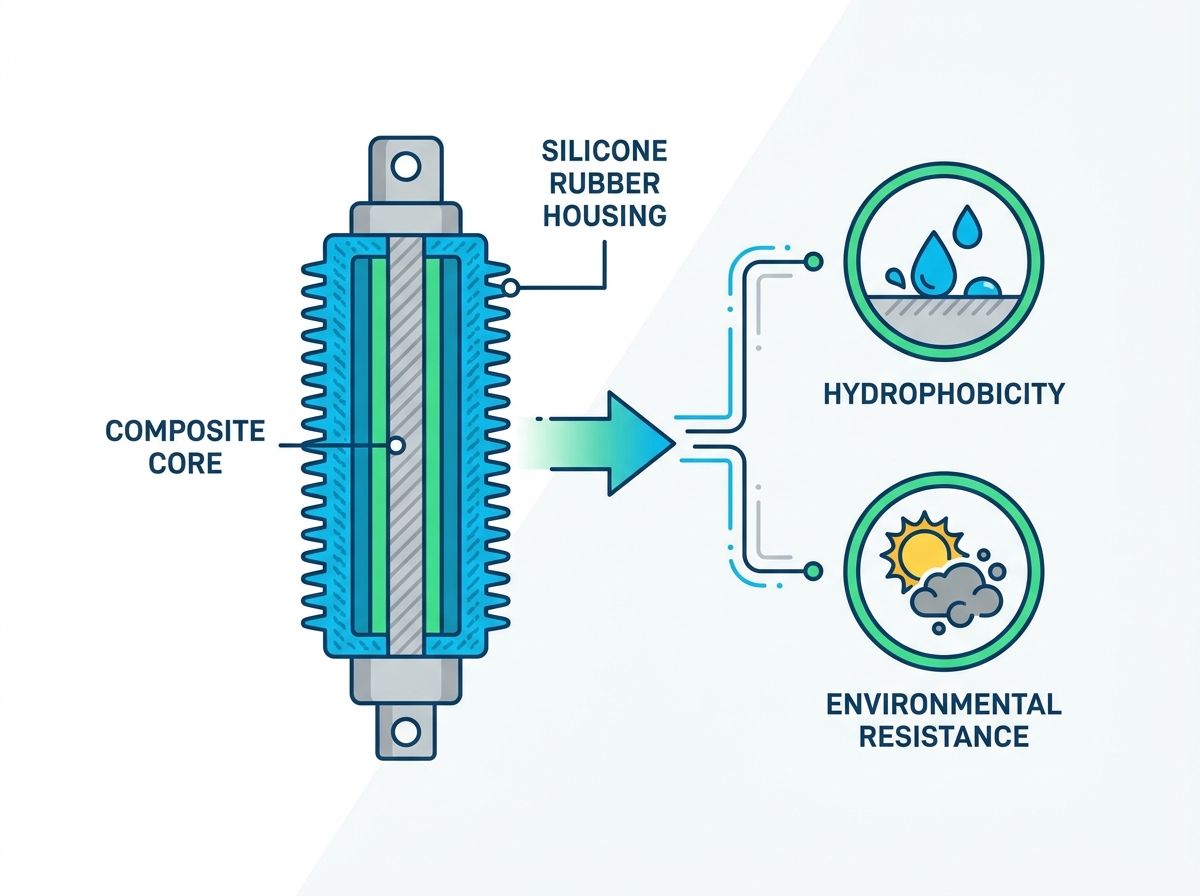

Composite insulators rely on a strict dual-component architecture designed to separate mechanical and electrical duties. The internal Fiberglass Reinforced Plastic (FRP) core provides the necessary mechanical strength. It handles the heavy cantilever loads, tension, and compression forces exerted by busbars and switchgear within the substation. However, the FRP core is highly susceptible to environmental damage. Bare fiberglass degrades rapidly when exposed to ultraviolet radiation, moisture, and electrical stress. The external housing must protect this core from the elements while simultaneously providing the required creepage distance to prevent electrical discharge between energized components and grounded steel structures.
The external housing must maintain high dielectric strength under continuous high-voltage stress. Insulators operate in harsh environments filled with airborne pollutants, industrial dust, agricultural chemicals, and marine salt. These contaminants inevitably settle on the housing surface. When ambient moisture from fog, light rain, or morning dew mixes with these pollutants, it creates a conductive layer across the insulator. The housing material must resist surface tracking. It must prevent the formation of carbonized paths that eventually lead to a complete electrical short circuit across the equipment. If the housing material allows continuous leakage current, the resulting heat will permanently damage the polymer matrix.
A seamless, void-free barrier is an absolute necessity for long-term survival. The interface between the FRP core and the external housing is the most vulnerable point of any composite insulator. If the housing fails to provide a hermetic seal, moisture penetrates the core. This moisture ingress leads to internal partial discharges under high electrical fields. The discharge generates nitric acid, which chemically attacks the fiberglass rods in a process known as brittle fracture. A compromised environmental seal guarantees premature mechanical snapping and explosive electrical failure on the grid. Manufacturers must utilize advanced over-molding or extrusion techniques to ensure a permanent chemical bond between the sheath and the rod.
Silicone rubber possesses a naturally low surface energy. This physical property causes water to bead up into isolated droplets rather than forming a continuous conductive film. When airborne dirt and salt accumulate on the insulator, traditional materials like glass or porcelain become hydrophilic, allowing water to sheet across the surface. Silicone rubber behaves entirely differently. Low molecular weight (LMW) siloxane chains diffuse from the bulk polymer matrix to the surface. These highly mobile chains encapsulate the dirt and salt particles. This unique migration process transfers the hydrophobic properties to the pollution layer itself. The insulator maintains its water-repellent nature even in heavily contaminated industrial or coastal environments, actively suppressing leakage currents.
The disruption of continuous water films directly prevents leakage current escalation. On hydrophilic surfaces, wet pollution forms a continuous path for electricity to flow to the ground. This current generates localized heat, which evaporates the moisture in narrow bands. These dry bands interrupt the current flow, causing small electrical arcs to jump across the dry gaps. This phenomenon is called dry-band arcing. Continuous dry-band arcing degrades the housing material and often escalates into a full pollution flashover, tripping substation breakers. Because silicone rubber forces water into isolated beads, continuous conductive paths cannot form. This drastically reduces leakage currents and nearly eliminates the risk of pollution flashovers, keeping the grid online during severe weather.
Polymer insulators must survive decades of direct sunlight, ozone exposure, and atmospheric stress. The chemical structure of silicone rubber provides inherent resistance to these elements. The polymer backbone consists of alternating silicon and oxygen (Si-O) atoms. The binding energy of the Si-O bond is approximately 444 kJ/mol. The ultraviolet radiation reaching the earth's surface carries an energy of about 300 to 400 kJ/mol. Because the bond energy exceeds the UV energy, sunlight cannot easily break the polymer chains. This prevents the severe chalking, cracking, and hardening that plague other organic polymers like EPDM, epoxy, or polyurethane over long-term outdoor deployment.
Ceramic and glass insulators are rigid and brittle. They transfer mechanical shocks directly through their structure, often snapping at the base flange during sudden impacts. Silicone rubber is an elastomer. It remains flexible across a wide temperature range, typically from -50°C to +50°C. This flexibility provides natural vibration damping. During seismic events, mechanical shocks, or heavy wind loads, the elastomeric housing absorbs and dissipates stress. This prevents the catastrophic structural failures commonly seen in rigid porcelain substations during earthquakes. Grid operators in high-seismic zones specifically mandate polymer housings to meet IEEE 693 high seismic performance levels.
HTV silicone rubber is the dominant and preferred material for composite post insulator housings. Manufacturers process HTV using high heat and heavy pressure during the molding or extrusion phase, typically utilizing peroxide or platinum curing agents. This process creates a dense, highly cross-linked polymer matrix. HTV offers superior mechanical toughness compared to other silicone types. It resists tearing, puncture, and abrasion during rough installation handling and severe weather operation. Most importantly, the robust structure of HTV allows it to hold very high volumes of inorganic fillers without losing its physical integrity or elastomeric properties.
Pure silicone rubber cannot withstand continuous electrical arcing without degrading. Manufacturers add Aluminum Trihydrate (ATH) fillers to the HTV base to dramatically improve tracking and erosion resistance. When dry-band arcing occurs on the housing surface, the localized temperature spikes rapidly. At approximately 220°C, the ATH filler undergoes an endothermic reaction. It decomposes and releases water vapor. This water vapor actively cools the electrical arc and blows away the conductive carbon byproducts. This prevents permanent carbon tracking and material erosion.
Formulating the right ATH ratio requires strict precision. Higher ATH content significantly improves tracking resistance. However, overloading the silicone with ATH makes the rubber stiff and brittle. It reduces the mechanical tear strength, making the sheds prone to ripping during transport. Manufacturers must balance the filler load to achieve both electrical durability and mechanical flexibility. Quality formulations typically contain between 40% and 60% ATH by weight.
While HTV is standard for large structural insulators, other silicone forms serve different grid applications. Liquid Silicone Rubber (LSR) cures much faster and is generally used in injection molding for smaller, less mechanically demanding components like cable accessories, surge arrester housings, or distribution-class insulators. Room Temperature Vulcanizing (RTV) silicone is not a structural housing at all. It is a liquid coating applied to existing porcelain insulators. Grid operators spray RTV onto legacy ceramic insulators to artificially add hydrophobic properties without replacing the entire heavy porcelain unit, though these coatings require reapplication every 10 to 15 years.
Material Type | Primary Application | Mechanical Strength | Filler Capacity (ATH) |
|---|---|---|---|
HTV (High Temperature Vulcanized) | Composite post insulators, transmission line insulators | Very High | Excellent (Allows high ATH loading) |
LSR (Liquid Silicone Rubber) | Cable accessories, small distribution insulators | Moderate | Limited (High filler reduces flowability) |
RTV (Room Temperature Vulcanizing) | Retrofit coatings for existing porcelain | Low (Coating only) | Moderate |
When evaluating a composite post insulator silicone rubber formulation against traditional porcelain, the application environment dictates the engineering value. Line insulators hang from transmission towers and experience mostly tension loads. Station post insulators support heavy equipment like busbars, disconnect switches, and capacitor banks in substations. They must handle complex bending and cantilever loads. The lightweight and hydrophobic nature of silicone rubber specifically benefits high-voltage substation gantries. It simplifies structural engineering, reduces the required steel tonnage for support structures, and lowers the risk of widespread outages caused by a single polluted porcelain post flashing over.
Composite insulators weigh significantly less than their porcelain counterparts. A silicone rubber composite post insulator is often 70% to 80% lighter than a ceramic insulator of the exact same voltage class and mechanical rating. This massive weight reduction transforms installation logistics on the job site. Substation gantries require less steel reinforcement to support the equipment. Rigging crews can handle the units with lighter cranes, bucket trucks, or even manual lifting equipment in restricted spaces. Freight costs drop substantially, and the risk of dropping and breaking heavy ceramic units during transit or offloading disappears entirely.
Traditional porcelain insulators operating in coastal, desert, or industrial areas require scheduled maintenance to prevent flashovers. Grid operators must deploy washing crews with high-pressure demineralized water trucks or specialized helicopters to clean the pollution off the ceramic sheds. This process is expensive, requires planned outages, and consumes vast amounts of water. Silicone rubber housings are virtually self-cleaning. Their hydrophobicity transfer mechanism encapsulates dirt, and natural rainfall easily washes the beaded water and encapsulated grime away. This eliminates routine washing requirements and drastically lowers long-term operational expenditures for the utility.
Safety in remote or publicly accessible areas is a major concern for grid operators. Porcelain insulators are highly susceptible to vandalism, particularly ballistic impact from firearms or thrown rocks. When porcelain fails mechanically or electrically, it shatters explosively. It sends sharp, heavy ceramic shrapnel across the substation, endangering nearby personnel and destroying adjacent equipment. Silicone rubber composites do not shatter. Even if a projectile pierces the housing and damages the fiberglass core, the insulator remains largely intact. The elastomeric sheath contains the damage, preventing secondary destruction and allowing crews to replace the unit safely.
The primary risk in composite insulator manufacturing is interface failure. The bond between the fiberglass core and the silicone housing must be flawless. Buyers must evaluate a manufacturer's over-molding or extrusion processes. The process must ensure a chemical bond at the molecular level, not just a physical shrink-wrap. If air voids exist between the core and the housing, moisture will eventually penetrate. High electrical fields will cause partial discharges within these microscopic voids. This generates nitric acid, which eats through the fiberglass core and causes catastrophic brittle fracture. Procurement teams must demand proof of void-free bonding through acoustic emission testing or strict factory cross-sectioning protocols.
The market contains substandard products utilizing cheap, highly diluted silicone blends. Some manufacturers blend silicone with EPDM rubber or use cheap silica fillers instead of ATH to cut production costs. These diluted housings lose their hydrophobicity quickly, chalk under UV light, and fail rapidly under electrical tracking. Advise engineering teams to request specific silicone content tests before approving a vendor. Thermogravimetric analysis (TGA) reports verify the exact polymer base and filler percentages. Ensure the formulation relies on pure HTV silicone heavily loaded with proper ATH for arc resistance.
Elastomeric housings require different handling protocols than rugged porcelain. Improper rigging is a common failure point on construction sites. If installation crews wrap steel cables or chains directly around the silicone sheds, they will cut or tear the rubber. This exposes the core to immediate moisture ingress. Additionally, silicone rubber is susceptible to biological threats. Birds may peck at the soft material to build nests, and rodents may chew on the sheds in storage yards. Mitigate these risks by enforcing proper storage in enclosed crates, mandating the use of wide nylon lifting straps, and installing polycarbonate avian guards in high-risk deployment zones.
Procurement specifications must mandate strict adherence to international testing standards. Buyers must require compliance with IEC 61109 for suspension/tension composite insulators and IEC 61952 for composite post insulators. IEEE equivalents apply in North American markets. Do not accept products without comprehensive, third-party type-test certificates. Pay specific attention to tracking and erosion tests. The 1000-hour salt fog test is critical for verifying that the silicone formulation and ATH filler ratio can withstand prolonged electrical stress in wet, polluted conditions without degrading or catching fire.
Laboratory tests provide a baseline, but field performance proves actual viability. Assess a manufacturer's historical field data. Request case studies of their specific HTV formulation deployed in environments similar to your target grid. Accelerated aging tests, such as the 5000-hour multi-stress test, help simulate decades of UV, moisture, and voltage exposure in a controlled chamber. Correlating these accelerated tests with documented field performance guarantees the expected 20 to 30-year operational lifespan of the insulator.
No single insulator design fits every environment. You must match the specific silicone formulation and the physical creepage profile to the deployment environment. In heavy marine salinity or industrial pollution zones, require alternating shed designs. Alternating large and small sheds prevents continuous water streams from bridging the gaps between sheds during heavy rain. In arid desert environments with high dust accumulation, aerodynamic uniform sheds perform better by allowing wind to naturally clean the surface. Profile the environment first, calculate the required specific creepage distance, and then specify the housing geometry.
Audit potential suppliers' type-test certificates, specifically verifying IEC 61952 compliance and passing results for the 1000-hour salt fog tracking and erosion test.
Request Thermogravimetric Analysis (TGA) reports to verify the exact silicone polymer content and confirm the ATH filler percentages meet heavy-duty tracking requirements.
Review handling and rigging guidelines with your installation contractors to mandate the use of nylon slings, preventing accidental cutting of the elastomeric sheds during construction.
Assess the specific pollution levels and rainfall patterns of your substation site to determine the optimal shed profile geometry before finalizing procurement specifications.
A: Silicone rubber offers unique hydrophobicity transfer. It migrates low molecular weight chains to encapsulate surface dirt, maintaining water repellency in polluted environments. EPDM lacks this recovery mechanism. Furthermore, silicone's strong Si-O chemical bonds provide superior UV resistance compared to EPDM, which tends to chalk, crack, and lose its surface integrity over time.
A: High-quality silicone rubber insulators typically offer an expected lifespan of 20 to 30 years. The exact duration depends heavily on the operating environment, the intensity of UV exposure, the severity of pollution, and the quality of the specific HTV silicone formulation used by the manufacturer.
A: Yes, continuous heavy arcing or severe corona discharge can temporarily suppress the material's hydrophobicity. However, silicone rubber uniquely recovers this property. Once the electrical stress is removed or reduced, the material typically restores its water-repellent characteristics within 24 to 48 hours of rest.
A: Engineers use advanced laboratory methods to verify material composition. Thermogravimetric Analysis (TGA) measures weight changes as the material is heated, identifying specific filler ratios. Fourier Transform Infrared Spectroscopy (FTIR) is also used to analyze the chemical bonds, verifying the base polymer is pure silicone rather than a diluted blend.
A: Yes. Because silicone is a soft elastomeric material, it can be pecked by birds or chewed by rodents, especially during improper storage. To mitigate this, operators use enclosed storage crates, install avian guards on substation gantries, and select specific shed designs that discourage nesting in high-risk areas.
A: Aluminum Trihydrate (ATH) is a critical filler added to improve tracking and erosion resistance. When exposed to the high heat of electrical dry-band arcing, ATH undergoes an endothermic reaction. It releases water vapor, which cools the arc and blows away conductive carbon, preventing permanent damage to the housing.
