The reliability of high-voltage transmission and substation infrastructure relies heavily on the environmental resistance of composite insulator housings. Material degradation in these components directly correlates to network outages. Grid operators face constant challenges with environmental pollutants compromising electrical networks. Specifying the wrong polymer housing for composite post insulators leads to premature aging. This accelerates leakage currents, initiates dry-band arcing, and ultimately causes costly pollution-triggered flashovers.

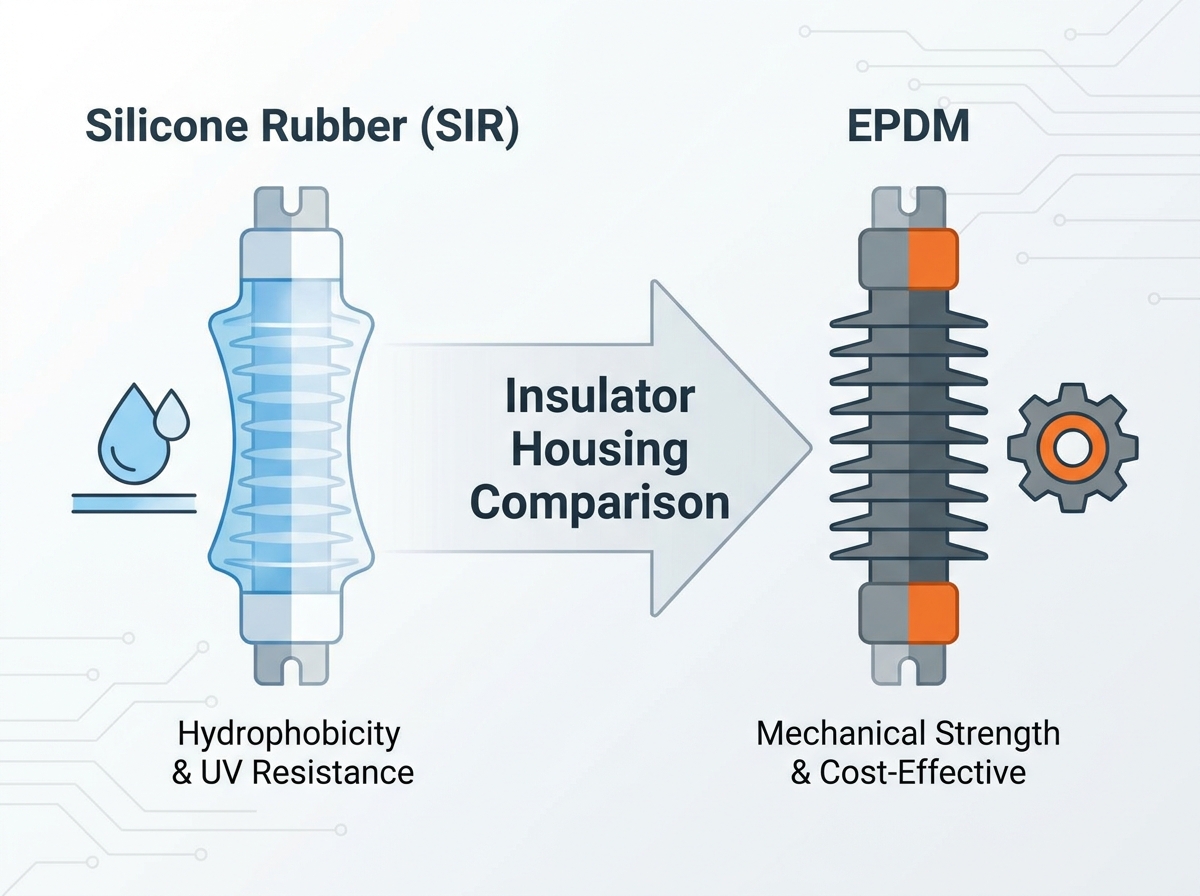

Resolving this engineering challenge requires a strict, evidence-based comparison between the two dominant elastomeric materials. Engineers must evaluate Silicone Rubber (SIR) and Ethylene Propylene Diene Monomer (EPDM). You must analyze their chemical structures against real-world operational stresses and long-term lifecycle economics. Selecting the correct housing material dictates the maintenance schedule and operational safety of the entire installation.
Hydrophobicity Retention: A silicone rubber insulator maintains and recovers its water-repellent properties in heavily polluted environments due to the migration of low molecular weight (LMW) siloxanes, a critical advantage over EPDM.
Mechanical Durability: EPDM historically offers superior initial tear strength and resistance to physical handling damage, though advanced High-Temperature Vulcanized (HTV) silicone formulations have significantly narrowed this gap.
Tracking and Erosion: Both materials require careful formulation with alumina trihydrate (ATH) fillers to resist tracking, but silicone rubber generally exhibits superior long-term UV, thermal, and ozone stability due to its inert synthetic nature.
Lifecycle Economics: While a silicone rubber insulator may present a higher initial procurement cost, the elimination of periodic washing and greasing in contaminated areas yields a lower OpEx over a 30+ year lifespan.
Composite post insulators serve a dual purpose in high-voltage applications. The polymer housing must protect the internal fiberglass reinforced plastic (FRP) core from moisture ingress. Simultaneously, the housing provides the necessary creepage distance for the specified voltage class. If the housing fails, moisture reaches the FRP core. When moisture interacts with the high electrical field, it forms nitric acid. This acid attacks the glass fibers within the core, leading to a catastrophic failure known as brittle fracture. The housing acts as the primary defense against this environmental degradation.
Industry standards define strict baseline requirements for these polymer housings. IEC 61952 and IEEE standards mandate specific performance thresholds. Materials must demonstrate high dielectric strength, exceptional weatherability, and flawless adhesion to the FRP core. Manufacturers perform rigorous testing to ensure the housing does not separate from the core under extreme mechanical or thermal stress. Core adhesion prevents moisture tracking along the internal interface, which would otherwise cause internal electrical breakdown.
The power industry has largely shifted from traditional porcelain to polymer insulators over the last three decades. Polymers offer lighter weight, better seismic performance, and superior pollution resistance. This weight reduction allows for lighter tower designs and easier installation in remote areas. However, the choice between SIR and EPDM dictates the maintenance schedule of the entire installation. Porcelain requires frequent washing in polluted areas. Polymers aim to reduce this burden. Understanding the exact material properties of the housing ensures you meet operational success criteria without incurring unexpected maintenance costs.
To ensure long-term reliability, engineers evaluate polymer housings against several critical failure modes. We look for resistance to tracking, erosion, and environmental stress cracking. The housing must maintain its structural integrity through decades of thermal cycling, from freezing winter temperatures to blistering summer heat. It must also resist the degrading effects of ultraviolet radiation and ozone generated by corona discharge.
When inspecting composite insulators in the field, maintenance crews focus on specific indicators of housing degradation. These visual cues help determine the remaining lifespan of the component.
Chalking: A powdery residue on the surface indicating polymer degradation.
Crazing: Shallow micro-cracks that trap dirt and moisture.
Tracking: Carbonized paths formed by electrical discharges across the surface.
Erosion: Physical loss of housing material due to sustained arcing.
Shed Tearing: Physical damage to the weather sheds, often caused by poor handling or wildlife.
Seal Failure: Degradation of the end fittings where the housing meets the metal hardware.
Polysiloxane, commonly known as silicone, forms the foundational chemistry of these housings. It is a highly inert synthetic polymer built on a framework of alternating silicon and oxygen atoms. This unique backbone differs fundamentally from the carbon-based backbones of traditional rubbers. The silicon-oxygen linkage yields a highly heat-resistant, rubber-like consistency. The bond energy of the Si-O linkage is significantly higher than the C-C bond found in organic polymers. This structure inherently resists chemical degradation from environmental pollutants, industrial emissions, and marine salt spray.
The defining characteristic of a silicone rubber insulator is its hydrophobicity recovery mechanism. Silicone housings facilitate the continuous diffusion of low molecular weight (LMW) polymer chains to the surface. These silicone oils encapsulate dirt, salt, and pollution layers. This encapsulation prevents continuous water film formation during rain or fog. Water beads up into isolated droplets, preventing the flow of leakage current across the insulator surface. Even when a heavy pollution layer covers the insulator, the LMW siloxanes migrate through the dirt, rendering the outer surface hydrophobic once again.
Silicone rubber offers superior stability against environmental weathering. The high bond energy easily withstands ultraviolet radiation. It resists extreme temperature fluctuations and remains flexible in sub-zero climates. Furthermore, silicone demonstrates excellent resistance to ozone and corona discharges. Corona activity quickly degrades standard organic polymers, but the inert synthetic nature of silicone prevents rapid erosion and tracking. This makes it highly suitable for ultra-high voltage (UHV) applications where corona discharge is a constant operational factor.
Manufacturers utilize different types of silicone for insulator housings, primarily High-Temperature Vulcanized (HTV) silicone and Liquid Silicone Rubber (LSR). HTV silicone is compounded as a high-consistency rubber and processed through extrusion or injection molding at high temperatures. It offers excellent mechanical properties and allows for high loadings of alumina trihydrate (ATH) filler. LSR is a two-part liquid system that cures rapidly in a heated mold. While LSR offers faster production times, HTV generally provides superior long-term tracking and erosion resistance in heavily polluted environments.
Despite these chemical advantages, silicone implementation carries specific physical vulnerabilities. Silicone generally possesses a lower Shore A hardness compared to organic rubbers. This softer nature makes the sheds susceptible to bird pecking and rodent damage in certain rural environments. Installation crews must follow strict handling protocols. Dragging or dropping the insulators can cause shed tearing. Proper rigging and careful transportation mitigate these physical risks. Crews should never lift composite insulators by their weather sheds; they must always use the designated metal end fittings.
The vulcanization process plays a critical role in the final performance of the silicone housing. Platinum-catalyzed addition curing is the preferred method for high-voltage applications. Unlike peroxide curing, which leaves acidic byproducts in the rubber matrix, platinum curing produces no volatile byproducts. This results in a purer polymer with superior electrical properties and better long-term stability under high electrical stress.
Ethylene Propylene Diene Monomer (EPDM) utilizes a traditional hydrocarbon-based structure. This carbon-carbon backbone provides robust physical characteristics. EPDM historically offers exceptional mechanical strength and high tear resistance. These physical properties make EPDM highly resistant to mechanical abuse and vandalism. Utility crews often prefer EPDM for its durability during rough handling, transport, and installation in challenging terrain. It withstands impacts that would easily tear or gouge a softer silicone housing.
To achieve acceptable electrical performance, EPDM relies heavily on high filler loadings. Manufacturers compound EPDM with alumina trihydrate (ATH) to resist tracking and erosion under electrical stress. When dry-band arcing occurs, the ATH filler undergoes an endothermic reaction. It releases water of hydration, cooling the electrical arc and preventing the polymer from carbonizing. Without sufficient ATH, the hydrocarbon backbone of EPDM would quickly break down into conductive carbon tracks, leading to rapid insulator failure under high-voltage stress.
EPDM faces severe limitations in contaminated environments. Unlike silicone, EPDM lacks a hydrophobicity transfer mechanism. Surface oxidation and pollution accumulation rapidly degrade its initial water repellency. The surface becomes hydrophilic, allowing continuous water films to form during rain, fog, or heavy dew. This wetting increases leakage current and promotes dry-band arcing. The continuous arcing accelerates surface erosion and further degrades the polymer.
Consequently, EPDM requires routine maintenance in coastal or industrial zones. Utilities must implement costly washing programs to remove pollution layers before they cause flashovers. In highly contaminated areas, crews may need to wash EPDM insulators multiple times per year. Some utilities apply silicone grease to EPDM insulators to artificially create a hydrophobic surface. However, this grease eventually saturates with dirt and must be painstakingly removed and reapplied, adding massive labor costs to the maintenance budget.
The compounding of EPDM requires precise engineering. Achieving the right balance between mechanical strength and electrical tracking resistance is difficult. Adding more ATH improves tracking resistance but makes the rubber stiffer and harder to process. It also reduces the tear strength. Manufacturers must carefully control the mixing process to ensure the ATH is evenly dispersed throughout the polymer matrix. Agglomerations of filler can create weak points where electrical tracking initiates.
Field experience shows that EPDM insulators perform adequately in clean, inland environments where pollution levels are low and natural rain washing is sufficient. In these specific applications, the superior mechanical toughness of EPDM provides a distinct advantage, particularly in areas prone to vandalism or severe physical impacts. However, applying EPDM outside of these narrow parameters invites operational instability.
Evaluating wet flashover performance metrics reveals stark differences between the two materials. Under heavy salt-fog or industrial dust conditions, silicone maintains a significantly higher flashover threshold. The hydrophobic surface prevents the conductive pollution layer from becoming fully wetted. EPDM, conversely, wets out completely. This wetting drastically lowers the flashover voltage, increasing the risk of unexpected network outages during light rain or morning dew. The ability to maintain high flashover voltages in wet, polluted conditions is the primary reason utilities transition to silicone.
Long-term aging and degradation rates further separate the materials. Field data over 15 to 20 year periods highlights these differences. EPDM often exhibits chalking, crazing, and a complete loss of surface gloss. The surface hardens and micro-cracks develop, trapping more pollution. High-Temperature Vulcanized (HTV) silicone maintains its sustained flexibility. The inert stability of silicone prevents the deep surface micro-cracking commonly observed in aging EPDM installations. Silicone sheds remain pliable and continue to transfer hydrophobicity even after decades of UV exposure.
Manufacturing processes impact the final quality of the composite post insulator. Manufacturers utilize injection molding and extrusion processes for both materials. However, vulcanization techniques vary. Transforming raw silicone resins into durable rubber requires precise temperature control. Achieving a final, void-free bond to the FRP core is critical. Voids at the core-housing interface lead to internal tracking and eventual puncture of the insulator. Modern injection molding of HTV silicone ensures a seamless, high-pressure bond that eliminates these dangerous voids.
The interface between the polymer housing and the metal end fittings is another critical evaluation dimension. Moisture ingress at the triple point (where air, polymer, and metal meet) causes rapid degradation. Silicone rubber generally exhibits better adhesion to the metal fittings when proper primers are used. The flexibility of silicone also accommodates the different thermal expansion rates of the FRP core, the polymer housing, and the metal fittings, maintaining a watertight seal through extreme temperature variations.
Performance Parameter | HTV Silicone Rubber | EPDM Rubber |
|---|---|---|
Polymer Backbone Chemistry | Alternating Silicon-Oxygen (Inert) | Carbon-Carbon (Hydrocarbon) |
Bond Energy | High (444 kJ/mol) | Lower (356 kJ/mol) |
Hydrophobicity Retention | Excellent; dynamic recovery via LMW migration | Poor; becomes hydrophilic as pollution accumulates |
Mechanical Tear Strength | Moderate; requires careful handling during installation | High; excellent resistance to physical abuse |
UV & Ozone Resistance | Superior; resists degradation from sunlight and corona | Moderate; prone to chalking and surface crazing |
Pollution Performance | Self-cleaning; ideal for heavy industrial/coastal areas | Requires periodic washing/greasing in polluted zones |
Tracking Resistance | High; inherently resistant plus ATH filler benefits | Relies entirely on high ATH filler loading |
Flexibility at Low Temps | Remains highly flexible down to -50°C | Becomes stiff and brittle at extreme low temperatures |
When evaluating tracking and erosion resistance, engineers rely on the inclined plane test (IEC 60587). This test applies a continuous conductive liquid contaminant and high voltage to the material surface. Silicone rubber consistently outperforms EPDM in this test, showing less material loss and higher resistance to deep tracking. The combination of silicone's inherent thermal stability and the endothermic cooling of the ATH filler provides a robust defense against dry-band arcing.
Procurement teams must evaluate capital expenditure versus operational expenditure trade-offs when specifying polymer housings. EPDM generally presents a more cost-effective upfront material and manufacturing cost. The raw materials are cheaper, and the compounding process is less specialized. However, modeling the operational costs over a 30-year lifespan reveals a different economic reality. You must factor in the labor, equipment, and outage costs associated with washing EPDM insulators. The self-cleaning nature of silicone drastically reduces these recurring operational expenses.
Application-specific ROI dictates the final material selection. EPDM remains economically viable in specific scenarios. Clean, inland environments with low pollution levels suit EPDM well. If the site carries a high risk of mechanical damage or vandalism, the physical toughness of EPDM provides value. In these low-stress environments, the lack of hydrophobicity recovery does not severely impact the electrical performance of the grid. Utilities can install EPDM and expect a reasonable service life without excessive maintenance.
Conversely, specific environments mandate silicone for a positive ROI. Coastal regions subject to marine salt spray require continuous hydrophobicity to prevent flashovers. Heavy industrial zones with high particulate emissions demand self-cleaning properties. High-voltage direct current (HVDC) applications experience aggressive electrostatic pollution accumulation, drawing dirt to the insulator surface much faster than AC lines. In these harsh scenarios, the operational savings from eliminating maintenance cycles far outweigh the initial premium paid for silicone rubber housings.
To accurately calculate the lifecycle value of an insulator installation, engineers must account for several hidden operational costs.
Washing Equipment: The cost of specialized high-pressure washing trucks or helicopter washing services.
Labor Hours: The time required for crews to access remote structures and perform manual cleaning.
Water Sourcing: The logistical cost of transporting demineralized water to the site for live-line washing.
Outage Costs: The lost revenue and grid instability caused by de-energizing lines for maintenance.
Premature Replacement: The cost of replacing EPDM insulators that have irreversibly degraded due to severe tracking.
By eliminating these recurring costs, silicone rubber provides a significantly lower total expenditure over the life of the substation or transmission line. The initial material premium is typically recovered within the first five years of operation in a heavily polluted environment.
Quality control in compounding represents a major specification risk. Not all silicone rubbers deliver equal performance. Poorly formulated silicone rubbers with insufficient ATH filler can fail prematurely. Despite the inherent advantages of the base polysiloxane material, inadequate filler loading reduces tracking resistance. Procurement engineers must verify the specific compounding ratios to ensure the material withstands prolonged electrical stress without eroding. Manufacturers cutting costs by reducing ATH content expose utilities to severe reliability risks.
Manufacturers sometimes offer SIR/EPDM blends, marketing them as alloys. You must critically evaluate these hybrid materials. The trade-off reality often disappoints. Attempting to combine the mechanical strength of EPDM with the hydrophobicity of SIR frequently results in sub-optimal performance. Alloys often fail to achieve the rapid hydrophobicity transfer of pure silicone, while simultaneously losing the extreme tear resistance of pure EPDM. The two polymers do not cross-link perfectly, creating microscopic phase separations that can initiate electrical tracking.
Strict verification and testing protocols mitigate these specification risks. Advise your procurement teams to demand comprehensive test data before approval. Request 1000-hour salt-fog tracking tests to verify long-term electrical endurance. Require specific hydrophobicity classification data ranging from HC1 to HC7 according to STRI guidelines. Only accept materials that maintain excellent hydrophobicity (HC1-HC3) after accelerated aging tests. Rigorous testing ensures the installed product meets field expectations.
Engineers should also specify the exact type of fiberglass core required. ECR-glass (Electrical Chemical Resistance glass) is mandatory for modern composite insulators. Standard E-glass is highly susceptible to acid attack. If moisture penetrates the housing and forms nitric acid, E-glass will suffer brittle fracture rapidly. ECR-glass resists this acid attack, providing a critical secondary layer of defense if the polymer housing is ever compromised.
The crimping process used to attach the metal end fittings to the FRP core requires strict oversight. Over-crimping crushes the fiberglass core, creating mechanical weak points. Under-crimping allows the fitting to slip under heavy mechanical loads. Manufacturers must use acoustic emission testing during the crimping process to detect any micro-fractures in the core. Procurement specifications should mandate acoustic emission testing for all high-voltage composite post insulators.
Testing Standard | Purpose of Test | Acceptance Criteria for Silicone |
|---|---|---|
IEC 62217 | General tests for polymeric insulators | Passes 1000h salt-fog without tracking |
IEC 61952 | Specific tests for composite post insulators | Meets specified cantilever load limits |
STRI Guide | Hydrophobicity classification | Maintains HC1-HC3 after aging |
IEC 60587 | Inclined plane tracking test | No deep erosion at 4.5kV for 6 hours |
While EPDM offers superior mechanical toughness, it falls short in contaminated environments. The inert, heat-resistant, and hydrophobic nature of silicone makes it the definitive choice for high-voltage composite post housings. Any environment subject to moderate-to-heavy pollution requires the dynamic surface properties of polysiloxane. Silicone prevents leakage currents, eliminates dry-band arcing, and ensures long-term grid reliability without continuous maintenance interventions.
Apply strict shortlisting logic to your procurement process. Specify EPDM only for lower voltage classes in exceptionally clean environments where physical durability remains the primary concern. Specify HTV Silicone Rubber for critical substation infrastructure. Coastal grids, heavy industrial zones, and areas with high particulate pollution strictly require the self-cleaning properties of silicone to prevent flashovers.
Take immediate action to secure your network reliability by implementing the following steps:
Conduct a comprehensive site pollution severity (SPS) assessment across your network according to IEC 60815 guidelines.
Revise your procurement specifications to mandate HTV silicone housings for all high-voltage applications in moderate to heavy pollution zones.
Request accelerated aging test reports and specific ATH filler documentation from all shortlisted insulator manufacturers.
Implement strict handling and rigging protocols for your installation crews to prevent physical damage to the softer polymer sheds.
Partner with a qualified manufacturer to evaluate your current maintenance expenditures and justify the transition to a high-performance silicone rubber insulator for your next infrastructure upgrade.
A: Silicone relies on an inert polysiloxane structure. It continuously migrates low molecular weight (LMW) siloxanes to the surface. These siloxanes encapsulate dirt and salt, maintaining a highly hydrophobic surface that prevents continuous water films and stops leakage currents.
A: No. EPDM lacks the chemical mechanism to transfer hydrophobic properties to pollution layers. Over time, surface oxidation and dirt accumulation make EPDM inherently hydrophilic, allowing water to sheet across the surface and increase electrical tracking risks.
A: Blends often present technical compromises. While they attempt to mix EPDM's strength with silicone's water repellency, alloys typically fail to achieve the full hydrophobicity transfer of pure HTV silicone and degrade faster under severe environmental stress.
A: A high-quality silicone housing typically lasts 20 to 30 years. The exact lifespan depends on the severity of UV exposure, continuous electrical stress, and the quality of the manufacturer's specific HTV formulation and core bonding process.
A: EPDM historically provides superior physical toughness and tear strength. However, modern High-Temperature Vulcanized (HTV) silicone formulations have improved significantly, meeting all standard handling and installation requirements for utility applications.
A: Generally, no. Their dynamic self-cleaning properties encapsulate pollution and maintain water repellency. This eliminates or drastically reduces the need for the routine, costly washing programs required by EPDM and traditional porcelain insulators.
