High-voltage substation and transmission reliability faces severe threats from environmental stressors. Facilities operating in coastal, industrial, and high-humidity regions battle constant airborne contamination. Wet dust, salt fog, and industrial chemicals accumulate on equipment, drastically reducing insulation strength. This contamination drives up leakage currents, triggers localized arcing, and ultimately causes catastrophic flashovers that force grid downtime.
Traditional porcelain or glass insulators demand relentless maintenance in these environments. Field crews must constantly wash or grease ceramic units to prevent failure. Specifying the correct silicone rubber post insulator provides a passive, highly effective defense mechanism. This guide breaks down how humidity, pollution, and extreme weather interact with silicone materials. We provide a strict technical framework for evaluating and sourcing insulators designed for the most demanding environmental applications.
Hydrophobic Recovery is Finite: High-Temperature Vulcanized (HTV) silicone rubber transfers hydrophobicity to pollution layers, but repeated, heavy exposure without dry periods can temporarily exhaust this capability.
Silicone Content Dictates Performance: Low silicone content directly correlates with poor hydrophobicity and accelerated aging; verifying material composition is a critical procurement step.
Synergistic Degradation: Humidity alone is rarely the sole failure vector; the combination of UV exposure, oxygen (oxidation), salt fog, and extreme temperatures accelerates surface tracking and erosion.

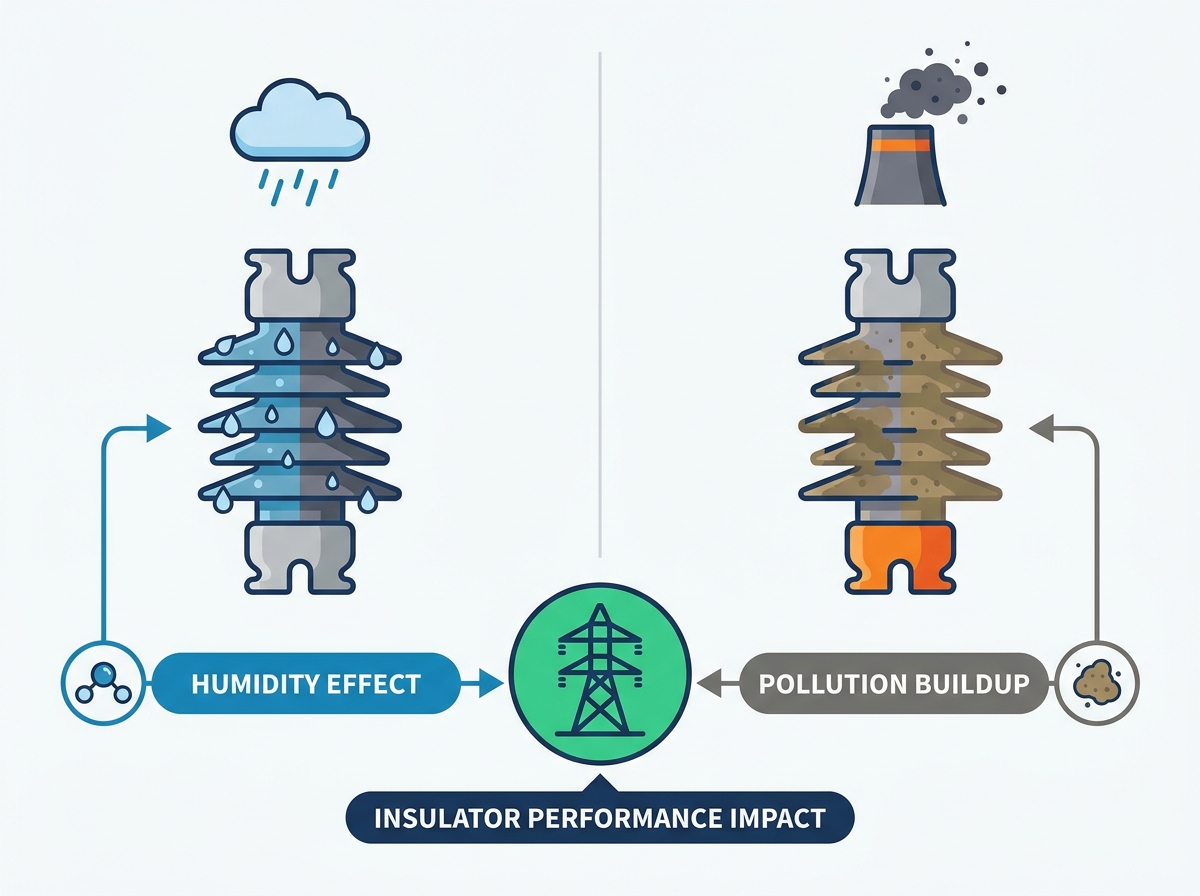

Continuous high humidity and light condensation fundamentally alter the surface physics of contaminated insulators. When moisture interacts with accumulated dirt, it forms a continuous conductive film across the insulator profile. This film provides a low-resistance path for electrical current to escape the conductor and travel toward the grounded structure. You will rarely see immediate failure from dry dust; the introduction of moisture is the primary catalyst for electrical tracking.
Heavy rain and light drizzle affect the insulator surface very differently. Heavy rain acts as a natural cleaning agent. It washes away loose, non-soluble contaminants and temporarily reduces the overall pollution layer. However, continuous heavy rain can also suppress the material's hydrophobic properties over time. Light drizzle or dense fog represents a much higher risk. These conditions introduce just enough moisture to activate dry pollution layers without washing them away. The contaminants absorb the moisture, turning into a highly conductive slurry.
The progression from contamination to flashover follows a predictable sequence in high-humidity environments:
Airborne contaminants settle on the insulator sheds during dry periods.
Light fog or condensation moistens the pollution layer, creating an electrolyte solution.
Leakage currents begin flowing across the newly formed conductive path.
The current generates localized heat, evaporating moisture in narrow strips to form dry bands.
Electrical stress concentrates across these dry bands, triggering small electrical arcs.
The arcs elongate across the surface, eventually bridging the entire creepage distance and causing a full flashover.
Field teams measure site pollution severity using two primary metrics. Equivalent Salt Deposit Density (ESDD) measures the amount of soluble contaminants, primarily salts, on the insulator surface. Non-Soluble Deposit Density (NSDD) measures the accumulation of inert materials like dust, sand, or cement. High ESDD levels indicate a severe risk for conductive film formation when wet. High NSDD levels act like a sponge, holding moisture against the insulator surface for longer periods.
Industrial chemical deposits and coastal salt fog adhere aggressively to insulator sheds. In coastal areas, prevailing winds carry microscopic salt particles inland. These particles settle on the leeward side of the insulator sheds. Industrial zones produce sulfur dioxide, heavy metals, and carbon dust. These materials bake onto the silicone surface during hot, dry periods.
Site Pollution Severity (SPS) Class | Typical Environment | ESDD Range (mg/cm²) | Contamination Characteristics |
|---|---|---|---|
Light (Class a) | Rural areas, no industrial activity | < 0.03 | Minimal dust, easily washed by natural rain. |
Medium (Class b) | Suburban areas, light traffic | 0.03 - 0.06 | Moderate accumulation of exhaust particulates. |
Heavy (Class c) | Industrial zones, inland coastal areas | 0.06 - 0.10 | High concentration of chemical deposits and salt. |
Very Heavy (Class d) | Direct coastal exposure, heavy mining | 0.10 - 0.20 | Thick, aggressive salt fog and conductive dust. |
Extreme (Class e) | Desert coastal regions, heavy chemical plants | > 0.20 | Rapid buildup of highly conductive, sticky pollutants. |
When high humidity rolls in, these deposits dissolve. The resulting electrolyte solution creates highly conductive paths. As leakage current flows through this solution, the heat generates dry bands. The continuous cycle of wetting, arcing, and drying rapidly degrades the polymer surface if the material lacks sufficient resistance.
Freezing rain and extreme cold introduce severe mechanical and electrical stresses. When freezing rain hits an insulator, it forms a solid layer of ice. If the rain continues, icicles grow from the edges of the sheds. Eventually, these icicles can bridge the gaps between adjacent sheds, effectively short-circuiting the creepage distance. You will often see this phenomenon in northern substations during late winter storms.
Polluted ice bridging alters the electrical field distribution across the insulator. The ice itself is relatively non-conductive when completely frozen. The danger arises during the melting phase. As the temperature rises, a thin film of water forms on the surface of the polluted ice. This water mixes with the trapped contaminants, creating a highly conductive path.
Leakage currents spike dramatically during this melting phase. The electrical field concentrates at the air gaps between the melting ice and the insulator surface. This concentration triggers intense arcing. Insulators deployed in these regions require specific shed profiles, often alternating large and small diameters, to disrupt the formation of continuous ice bridges.
Environmental stressors rarely act in isolation. The combination of ultraviolet (UV) radiation, atmospheric oxygen, and moisture creates a destructive cycle known as photo-oxidative degradation. Prolonged exposure to UV rays breaks the chemical bonds within the silicone polymer matrix. Oxygen reacts with these broken bonds, causing the surface to harden and embrittle.
This embrittlement leads to micro-cracking across the insulator housing. These microscopic fissures provide perfect pockets for moisture and pollution to accumulate. Once contaminants settle into these cracks, natural rain washing becomes ineffective. The trapped pollution remains permanently embedded in the housing.
When moisture activates these trapped contaminants, electrical tracking begins. The localized arcing generates intense heat, which further degrades the surrounding polymer. This synergistic degradation accelerates material erosion, eventually exposing the fiberglass core to moisture and leading to catastrophic mechanical failure.
High-Temperature Vulcanized (HTV) silicone rubber possesses an inherently low surface energy. This physical property prevents water from spreading into a continuous film. Instead, water molecules bind to each other tighter than they bind to the silicone surface. This forces the moisture to form distinct, isolated droplets. We call this phenomenon hydrophobicity.
Because the water remains in isolated droplets, leakage currents cannot easily flow across the surface. The electrical path remains broken. This baseline hydrophobicity gives silicone a massive advantage over traditional ceramic alternatives. Porcelain and glass have high surface energies. Water readily sheets across their surfaces, instantly mixing with contaminants to form a conductive path.
In overhead line and substation applications, this water-beading effect prevents dry band arcing. Even when the insulator is covered in dust, the silicone material actively works to keep the surface electrically secure during fog or light rain. You can observe this directly in the field after a light drizzle; the silicone units will have distinct water beads, while adjacent porcelain units will look completely wet and glossy.
The true advantage of HTV silicone lies in its ability to transfer its hydrophobic properties to the surrounding dirt. The bulk silicone material contains Low Molecular Weight (LMW) siloxanes. These highly mobile polymer chains are not permanently cross-linked into the rubber matrix.
When a layer of pollution settles on the insulator, a concentration gradient forms. The LMW siloxanes naturally migrate from the bulk silicone, through the surface, and into the pollution layer. They physically encapsulate the dust, salt, and industrial particles. This encapsulation process renders the dirt layer itself water-repellent.
Even under heavy contamination, the surface maintains high electrical resistance. Water hitting the dirty insulator will still bead up and roll off, rather than soaking into the dust. This dynamic recovery mechanism allows silicone insulators to operate safely in environments that would cause immediate flashovers on porcelain units.
While hydrophobic transfer is highly effective, it is not infinite. The material can experience temporary hydrophobicity loss during prolonged, continuous wetting. Heavy, multi-day rainstorms or rapid, extreme pollution events can overwhelm the migration of LMW siloxanes. The surface may temporarily wet out, allowing leakage currents to rise.
The LMW siloxanes require time to migrate through the polymer matrix. If the pollution layer builds up faster than the siloxanes can travel, the surface loses its water repellency. Continuous electrical arcing also burns off the siloxanes at the surface, further depleting the protective layer.
To restore surface resistance, the insulator requires a rest period. A dry environment allows the LMW siloxanes to catch up, migrate to the surface, and re-encapsulate the contaminants. Understanding these recovery limits is necessary when specifying insulators for regions with continuous, year-round high humidity and heavy pollution.
Not all silicone rubber formulations perform equally. Evaluating vendor material specifications is a mandatory step in the procurement process. Some manufacturers use high filler-to-polymer ratios to reduce production expenses. They add excessive amounts of Alumina Trihydrate (ATH) or silica to bulk up the material.
While ATH improves tracking and erosion resistance, too much filler displaces the actual silicone polymer. Low silicone content directly reduces the reservoir of LMW siloxanes available for hydrophobic transfer. Without a sufficient supply of these mobile chains, the insulator cannot recover its water repellency after heavy pollution events.
This reduced recovery capacity shortens the insulator's effective lifespan. It dramatically increases flashover risks in highly polluted zones. You must demand strict documentation of the polymer-to-filler ratio. Verifying material purity ensures the insulator will maintain its passive defense mechanisms over a multi-decade deployment.
Selecting the correct insulator profile requires matching the creepage distance to the specific site pollution severity (SPS). The IEC 60815 standard provides a strict methodology for this selection. You must calculate the unified specific creepage distance (USCD) based on the measured ESDD and NSDD levels at the installation site. When you specify a silicone rubber post insulator, getting the creepage distance right is just as important as the material formulation.
Higher pollution classes require longer creepage distances to prevent flashovers. However, simply elongating the insulator is not always practical. Manufacturers adjust the shed profile to maximize creepage within a limited physical space. They alter the shed diameter, spacing, and angle to optimize performance.
Alternating shed profiles offer significant advantages in extreme weather. By placing a smaller shed between two larger sheds, the design prevents water from cascading directly down the insulator body. This alternating profile also disrupts ice formation, making it much harder for icicles to bridge the entire creepage path during freezing rain.
Relying solely on basic visual inspections or standard data sheets is insufficient for harsh environments. Procurement teams must require comprehensive compliance testing to validate material durability. The following table outlines the evaluation standards required for high-voltage silicone insulators.
Test Name | Primary Purpose | Standard / Methodology |
|---|---|---|
1000-Hour Salt Fog Test | Evaluates tracking and erosion resistance under continuous wet, saline conditions. | IEC 62217 / IEC 61109 |
Inclined Plane Test | Measures the material's ability to withstand localized arcing and surface degradation. | IEC 60587 |
Artificial Pollution Flashover Test | Determines the voltage threshold for flashover under specific ESDD/NSDD contamination levels. | IEC 60507 (adapted for composites) |
Hydrophobicity Classification (HC) | Assesses water beading capability and recovery rate using the spray method. | STRI Guide 92/1 |
Beyond standard compliance, advanced material evaluation methods detect degradation before it becomes visible. Fourier Transform Infrared (FTIR) spectroscopy analyzes the chemical bonds on the insulator surface. It detects the loss of methyl groups and the formation of oxidation byproducts. This data reveals polymer aging long before chalking or cracking appears.
Always request third-party laboratory validation for these tests. Independent verification ensures the manufacturer's formulation actually withstands the environmental stressors simulated in the laboratory. This rigorous testing approach prevents premature grid failures.
Deploying premium composite materials fundamentally shifts grid maintenance strategies. Traditional porcelain substations in coastal or industrial zones require intensive upkeep. Maintenance crews must perform regular live-line washing to remove salt and chemical deposits. In extreme cases, they must apply and reapply Room Temperature Vulcanizing (RTV) silicone coatings to ceramic units to prevent flashovers.
These maintenance activities consume massive operational resources. Live-line washing requires specialized trucks, treated water, and highly trained personnel. If washing schedules are missed due to severe weather, the risk of a flashover outage increases exponentially. Outages lead to severe regulatory penalties and grid instability.
Specifying high-quality silicone rubber eliminates the need for routine washing. The material's natural hydrophobic recovery manages the pollution layer passively. This allows utilities to reallocate maintenance crews to other infrastructure tasks. The reduction in hazardous live-line work also significantly improves overall operational safety.
Even the best materials eventually age. Field engineers must know how to identify the early visual and diagnostic signs of surface degradation. Chalking is often the first visual indicator. The surface becomes dull and leaves a white, powdery residue when wiped. This indicates that the UV radiation has begun breaking down the polymer matrix, exposing the ATH filler.
Crazing follows chalking. Microscopic surface cracks form a shallow network across the sheds. While crazing does not immediately threaten mechanical integrity, it traps dirt and moisture, accelerating electrical tracking. Engineers use the STRI classification guide to field-test hydrophobicity.
STRI Class | Visual Observation After Spraying | Condition Assessment |
|---|---|---|
HC 1 - HC 2 | Discrete, round water droplets with high contact angles. | Excellent condition. Full hydrophobic recovery. |
HC 3 - HC 4 | Irregular droplets, some larger wet patches forming. | Moderate aging. Material is actively recovering but stressed. |
HC 5 - HC 6 | Large continuous water films covering most of the shed. | Severe degradation. High risk of leakage currents. |
HC 7 | Completely continuous water film. No beading present. | Total loss of hydrophobicity. Immediate flashover risk. |
Localized corona discharges also indicate severe surface stress. Using UV or corona cameras during high-humidity nights reveals purple arcing at the hardware fittings or across dry bands. Continuous corona activity physically erodes the silicone housing, eventually exposing the fiberglass core.
For high-risk substation deployments, utilities implement active leakage current monitoring systems. These sensors attach to the grounded end of the station post insulators. They continuously measure the micro-amps flowing across the surface. When leakage currents spike during fog or ice-melting events, the system alerts the control center. This data allows operators to preemptively address contamination issues before a flashover occurs.
When an existing silicone insulator shows advanced signs of aging, replacement is not the only option. Surface repair materials offer a viable life-extension strategy. Specialized cleaning agents can remove deeply embedded contaminants without damaging the underlying polymer.
Once cleaned, crews can apply a secondary RTV silicone coating over the aged housing. This fresh layer restores the LMW siloxane reservoir and reinstates the hydrophobic transfer capability. This mitigation strategy extends the operational life of the asset, delaying the need for a complete mechanical replacement.
Audit your existing substation maintenance logs to identify specific zones with high flashover rates or excessive live-line washing requirements.
Measure the Equivalent Salt Deposit Density (ESDD) and Non-Soluble Deposit Density (NSDD) at your target installation sites to establish an accurate baseline for material specification.
Require prospective manufacturers to provide independent, third-party laboratory data for 1000-hour salt fog and inclined plane tracking tests before approving any new insulator designs.
Install leakage current monitoring sensors on a sample group of newly deployed insulators to build a predictive maintenance model based on real-time environmental data.
A: High humidity activates dry contaminants, creating a conductive path. However, silicone's hydrophobicity prevents continuous water filming. The water remains in isolated droplets, keeping leakage currents significantly lower than on porcelain and preventing dry band arcing.
A: It is the ability of the silicone material to secrete low molecular weight (LMW) siloxanes. These polymer chains migrate through accumulated dirt and salt, encapsulating the particles and making the pollution layer itself highly water-repellent.
A: Rain itself does not damage the insulator and can help wash away loose non-soluble deposits. However, continuous heavy rain without dry periods can temporarily suppress hydrophobic recovery, reducing overall insulation strength until the material has time to rest and recover.
A: Higher silicone content ensures a larger reservoir of LMW siloxanes for hydrophobic transfer. Low silicone content leads to rapid loss of water repellency, increasing the risk of leakage currents and flashovers in humid or highly contaminated conditions.
A: Freezing rain can cause ice to bridge the insulator sheds. While silicone's low surface energy reduces ice adhesion compared to porcelain, melting polluted ice can still cause temporary spikes in leakage current. Optimized, alternating shed profiles are required for mitigation.
A: Industry-standard evaluations include the 1000-hour salt fog test, inclined plane tracking tests, and measuring the hydrophobicity class (HC) using the STRI spray method. Advanced spectroscopic analysis (FTIR) is also used to check for chemical oxidation.
A: Salt fog deposits form a highly conductive layer when moistened by high humidity or light drizzle. This leads to leakage currents and dry band arcing. If the insulator loses its hydrophobicity, these arcs elongate and eventually cause a complete surface flashover.
