The increasing demands on global power grids require high-voltage insulators to perform flawlessly under extreme environmental and electrical stress. Material selection remains a strict engineering decision that dictates whether a production line runs profitably or bleeds money through scrap and downtime. Manufacturers must balance long-term dielectric performance with production economics. Choosing between High Temperature Vulcanized (HTV) silicone and Liquid Silicone Rubber (LSR) drives tooling investments, cycle times, and overall manufacturing scalability. The fundamental difference in their molecular weight dictates whether a factory handles a solid gum or a pumpable liquid.
This guide breaks down the technical and financial trade-offs between HTV and LSR. We provide a framework to evaluate material properties, processing requirements, and production scalability. You will learn how to align elastomer characteristics with factory automation capabilities to build reliable insulators.
Tooling and CapEx: HTV requires robust molds capable of withstanding high injection pressures, whereas LSR requires high-precision molds to prevent flashing due to its low viscosity.
Production Volume: LSR generally favors highly automated, high-volume production runs due to faster cycle times, while HTV remains highly cost-effective for medium volumes and applications requiring exceptional mechanical strength.
Manufacturing Versatility: HTV supports both injection molding and extrusion (ideal for hollow core insulator profiles), whereas LSR is strictly utilized in injection molding processes.
Material Performance: Both materials offer excellent hydrophobicity and tracking resistance, but HTV typically provides superior "green strength" (uncured stability) and specific mechanical durability profiles required for large composite insulators.
Process Compatibility: Transitioning between HTV and LSR is not a simple material swap; it requires distinct pumping, mixing, and injection machinery.
The success of an insulator manufacturing line depends on precise material alignment. You must match the elastomer’s rheological properties and molecular structure with your factory's automation capabilities. The material must also survive the product's harsh end-use environment. High-voltage insulators face continuous UV exposure, pollution, and electrical stress. The base silicone polymer dictates how well the final product withstands these forces over a multi-decade lifespan.
HTV silicone is a solid, gum-like material featuring long polymer chains and a very high molecular weight. This structure gives it a stiff, clay-like consistency in its uncured state. Factory workers handle it in large blocks or continuous strips. It vulcanizes under elevated temperatures similar to traditional organic rubbers like EPDM. This makes HTV highly familiar to legacy rubber manufacturers who already possess the heavy milling equipment required to process it.
HTV dominates the high-voltage composite insulator market due to its exceptional manufacturing versatility. You can process HTV through high-pressure injection molding or extrude it through complex dies. This dual capability makes it indispensable for producing diverse insulator geometries, from massive suspension units to continuous weather sheds. Preparing HTV for the press involves several distinct steps:
Operators load raw silicone gum blocks onto an open two-roll mill.
The massive steel rollers shear the material, breaking down the polymer chains slightly to soften the batch.
Workers fold in specific curing agents, colorants, and additional fillers.
The milled rubber is sheeted off and cut into strips for the injection press stuffer.
LSR operates on a completely different physical baseline. It is a two-part liquid system characterized by shorter polymer chains and a lower molecular weight. Factories do not mill or handle LSR manually. Specialized dosing equipment pumps the liquid directly from 55-gallon drums into the injection molding machine. The two components mix dynamically just before entering the mold.
LSR features rapid curing properties. It utilizes a platinum-catalyzed addition curing process that reacts swiftly under heat. This allows for flash-less, waste-free manufacturing. The low viscosity enables the material to flow into intricate mold cavities with minimal injection pressure. It suits highly automated facilities aiming for maximum throughput and minimal operator intervention. The closed-loop system keeps the factory floor clean and eliminates the risk of airborne contamination mixing into the raw silicone.
Room Temperature Vulcanizing (RTV) silicone serves a different purpose entirely. RTV cures at room temperature upon exposure to atmospheric moisture. It is a flowable liquid but lacks the structural integrity for molding solid components. RTV is vital for high-voltage insulator coatings and field maintenance. Maintenance crews spray RTV onto aging porcelain or glass insulators to restore hydrophobicity. While RTV protects existing infrastructure, HTV and LSR remain the primary materials for OEM component manufacturing.
Insulator materials must prevent electrical current from bypassing the conductor and reaching the ground. They must also physically support heavy power lines under high winds and ice accumulation. Comparing HTV and LSR requires a deep dive into their respective electrical and mechanical limits on the grid.
Both HTV and LSR provide exceptional electrical insulation properties under high-voltage stress. The base siloxane polymer inherently resists electrical breakdown. However, outdoor insulators face surface pollution. Moisture and dirt create conductive bands. These bands cause localized electrical arcing, known as dry band arcing. This arcing generates immense heat, which can degrade the silicone and cause carbon tracking.
Manufacturers add Alumina Trihydrate (ATH) fillers to combat this degradation. Under high heat, ATH releases water vapor. This cools the surface and physically blows the electrical arc away, preventing the formation of conductive carbon tracks. HTV silicone rubber for insulators handles massive ATH loadings exceptionally well. You can load HTV with up to 60% ATH by weight without destroying its processability. LSR struggles with extremely high filler loadings. The liquid becomes too viscous to pump efficiently. High ATH levels in LSR also cause severe abrasive wear on precision dosing pumps, static mixers, and injection nozzles.
High-voltage insulators endure severe physical stress. Suspension and tension insulators carry the immense weight of power cables. They face constant vibration and extreme weather loads. Mechanical durability is non-negotiable. Tear strength measures how well a material resists the propagation of a cut or nick. Tensile strength measures the force required to pull the material apart.
HTV generally holds a distinct advantage in sheer mechanical robustness. The long polymer chains create a dense, highly entangled molecular network after vulcanization. This network provides exceptional tear strength. If a bird pecks an HTV insulator shed, or if it suffers a minor impact during installation, the damage rarely spreads. LSR offers excellent tensile strength but often falls slightly behind premium HTV formulations in ultimate tear resistance. HTV remains the preferred choice for massive, heavy-duty composite insulators facing extreme physical loads.
Silicone rubber repels water. This hydrophobicity forces water to bead up rather than form a continuous conductive film. Both HTV and LSR maintain excellent hydrophobicity after exposure to UV radiation, industrial pollution, and corona discharges. They vastly outperform traditional EPDM rubber or porcelain in polluted environments.
The critical metric is hydrophobic recovery. When severe arcing temporarily destroys the surface hydrophobicity, low molecular weight (LMW) siloxanes migrate from the bulk material to the surface. These LMW siloxanes encapsulate dirt particles and restore the water-repellent layer. Both materials facilitate this recovery. Specific formulations and curing agents dictate the exact speed of recovery rather than the initial state of the rubber. Proper compounding ensures both HTV and LSR deliver decades of reliable weather resistance.
Mechanical and Dielectric Baseline Comparison | ||
Property | HTV Silicone | LSR Silicone |
|---|---|---|
Base Viscosity | Solid Gum (High MW) | Pumpable Liquid (Low MW) |
Maximum ATH Loading | Very High (Up to 60%) | Moderate (Limited by pump wear) |
Tear Strength | Exceptional | Good to Excellent |
Hydrophobic Recovery | Excellent | Excellent |
Green Strength | High (Holds shape uncured) | None (Flows freely) |

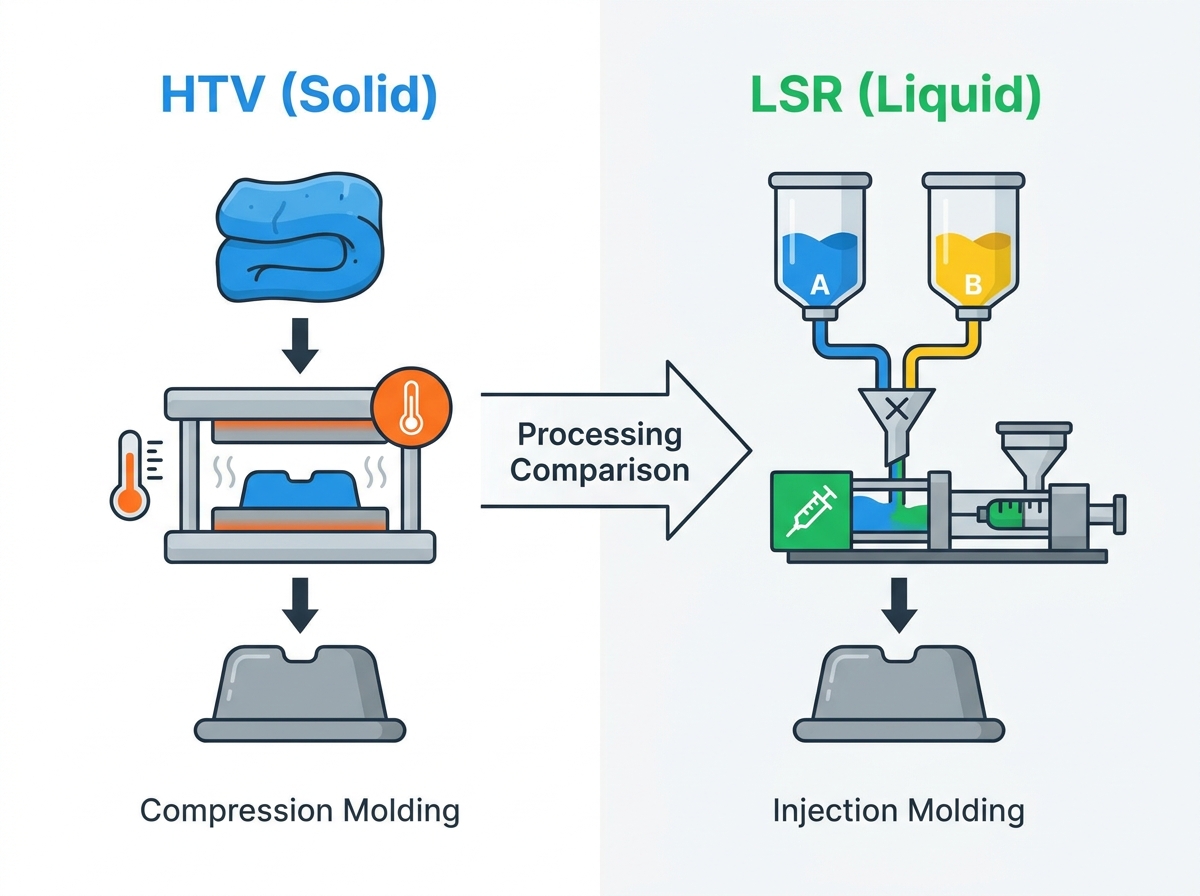

Material science dictates performance, but factory floor realities dictate production feasibility. Transitioning a polymer from a raw state into a finished high-voltage insulator requires distinct machinery, tooling, and labor strategies. HTV and LSR demand entirely different manufacturing ecosystems.
HTV is highly viscous. Forcing this stiff gum into a complex insulator mold requires immense force. Injection pressures often exceed 2,000 bar. This extreme pressure necessitates heavy-duty, expensive mold steel. The mold must resist deformation and clamping force blowouts. The robust tooling represents a significant upfront investment, but the molds endure decades of harsh industrial use. Presses running HTV require massive hydraulic tonnage to keep the mold halves locked during the injection phase.
LSR requires much lower injection pressure. The liquid flows easily into intricate cavities. However, this low viscosity introduces a different engineering challenge. LSR will flash through any microscopic gap in the mold. LSR tooling requires absolute precision machining. Parting lines must fit flawlessly. Gap clearances must remain under 0.01mm. This strict requirement for tight-tolerance, precision-machined tooling drives up initial mold costs for LSR, albeit for different engineering reasons than HTV.
Manufacturing versatility heavily favors HTV. HTV possesses high green strength. It holds its physical shape before vulcanization. This unique ability allows HTV to be extruded. Extrusion is critical for manufacturing continuous profiles. Factories extrude HTV to form the continuous weather sheds on hollow core insulators. They also use extrusion for long rod insulators. The extrusion process follows a specific sequence:
A continuous fiberglass core rod feeds into the extrusion line.
The rod passes through a specialized cross-head die.
The extruder forces the HTV silicone around the rod, forming a seamless jacket.
The coated rod passes through a long curing oven to vulcanize the silicone jacket in mid-air.
LSR lacks green strength. It is a liquid and cannot hold a shape outside a rigid cavity. LSR is strictly restricted to closed-mold injection processes. You cannot extrude LSR. If your product portfolio requires continuous profiles or hollow core weather sheds, HTV is the only viable silicone option.
Cycle time directly dictates factory throughput. LSR generally provides faster vulcanization speeds. It utilizes a platinum-catalyzed addition curing mechanism. When the liquid hits the heated mold, it cross-links in seconds. This rapid reaction allows for highly efficient, short cycle times. The fast cure rate means a single LSR machine can output significantly more parts per shift than a comparable HTV setup.
HTV traditionally relies on peroxide curing, which takes longer. Even when utilizing platinum-cured HTV formulations, the sheer mass of the solid rubber requires more time to reach the optimal curing temperature throughout the mold cavity. For high-volume production of small to medium insulators, LSR cycle efficiency offers a massive throughput advantage.
Labor requirements differ drastically. HTV often requires manual handling. Operators must mill the solid gum to soften it. They add colorants or specific curing agents on an open two-roll mill. Workers then manually load the heavy strips into the injection press stuffer. This process is labor-intensive and introduces the risk of contamination from dust or debris on the factory floor.
LSR utilizes closed-loop, automated pumping systems. The material travels directly from sealed drums through a static mixer into the injection barrel. The system automatically meters the A and B components alongside any color paste. This automation eliminates manual handling, reduces labor costs, and keeps the factory floor exceptionally clean. One operator can easily monitor multiple LSR injection machines simultaneously.
Engineering decisions ultimately face financial scrutiny. Evaluating the true cost of production requires looking beyond the price per kilogram. You must analyze material efficiency, labor reduction, and capital expenditure thresholds to determine the most profitable manufacturing route.
The baseline cost per kilogram heavily favors HTV. Solid silicone gum is significantly cheaper to manufacture and purchase than refined, two-part liquid silicone. If you evaluate material costs in a vacuum, HTV wins easily. The compounding process for HTV is straightforward, and the raw ingredients cost less to synthesize.
However, LSR offsets this raw material premium through processing efficiency. LSR requires fewer operators. The automated dosing systems run continuously. The faster cycle times mean a single machine produces more parts per shift. Manufacturers must contrast the raw material savings of HTV against the lower labor costs and faster throughput of LSR. For massive parts, the raw material cost dominates, favoring HTV. For small parts, the cycle time dominates, favoring LSR.
Production volume dictates the financial viability of each material. Low-to-medium production runs strongly favor HTV. The lower raw material costs and the ability to utilize legacy rubber molding equipment keep initial capital risks low. HTV is highly cost-effective for specialized, large-scale insulators produced in smaller batches where investing in automated liquid dosing systems makes no financial sense.
High-volume, continuous runs justify the heavy CapEx of LSR systems. If a factory produces millions of distribution-class insulators or surge arrester housings annually, LSR is superior. The rapid cycle times and automated handling generate a return on investment that quickly eclipses the higher raw material and precision tooling costs.
Material waste destroys profit margins. Injection molding requires runner systems to carry material into the actual part cavity. In HTV processing, the material in the runner system cures alongside the part. This cured silicone becomes scrap. You cannot melt and reuse thermoset silicone. HTV processes inherently generate scrap, which adds up over thousands of production cycles.
LSR minimizes or eliminates this waste. Engineers design LSR molds with cold-runner systems. The runner channels remain cooled, keeping the LSR in a liquid state. Only the material inside the heated part cavity cures. The liquid in the runner injects into the next part during the following cycle. This zero-waste manufacturing capability significantly reduces long-term material expenses and offsets the higher initial cost of the liquid silicone.
Comparison of HTV and LSR Manufacturing Metrics | ||
Metric | HTV (High Consistency Rubber) | LSR (Liquid Silicone Rubber) |
|---|---|---|
Raw Material Cost | Lower per kilogram | Higher per kilogram |
Injection Pressure | High (>2000 bar) | Low |
Tooling Requirements | Heavy-duty steel, high clamping force | Precision machining, ultra-tight tolerances |
Extrusion Capability | Yes (Excellent for hollow core/long rod) | No (Closed-mold injection only) |
Scrap Generation | Moderate to High (Cured runners) | Near Zero (Cold-runner systems) |
Ideal Production Volume | Low to Medium | High to Ultra-High |
Transitioning between materials or setting up a new production line carries inherent engineering and financial risks. Identifying these bottlenecks early prevents costly manufacturing delays and ensures the final insulators pass strict grid certification tests.
The most significant risk is underestimating the capital expenditure required to switch from HTV to LSR. You cannot simply pour liquid silicone into an existing HTV injection press. LSR requires entirely new infrastructure. You need specialized liquid dosing systems. You need precision water-cooled injection barrels to prevent premature curing. You need entirely new, tight-tolerance molds.
Do not base equipment decisions on immediate material costs. Conduct a thorough cost-benefit analysis based on a 5-to-10-year production forecast. Evaluate the exact footprint of the new machinery and the training required for your maintenance staff. Ensure your production volume guarantees a return on the massive initial CapEx before committing to an LSR transition.
High-voltage insulators often feature thick-walled designs and massive sheds. This geometry introduces the risk of uneven curing. If the mold temperature is too high, the outer skin of the insulator cures and burns before the internal core reaches vulcanization temperature. This causes internal voids, trapped gases, and severe structural weakness. This risk applies to both HTV and LSR, though the rapid curing of LSR makes it particularly sensitive to thermal imbalances.
Utilize advanced mold flow analysis software during the tooling design phase. Simulate the injection and heating process virtually. Design strategic heating channels and cooling baffles within the mold steel to ensure uniform heat distribution. Proper thermal management guarantees consistent dielectric and mechanical properties across every batch, regardless of the shed thickness.
Neither HTV nor LSR is universally superior for insulator manufacturing. The correct choice hinges entirely on your production volume, existing factory infrastructure, component geometry, and the specific mechanical requirements of the insulator design. Understanding these variables ensures long-term manufacturing profitability and grid reliability.
Choose HTV silicone when manufacturing large, mechanically demanding units. It remains the only choice for extruding hollow core profiles. HTV excels at medium production volumes or when utilizing existing high-pressure molding infrastructure. It handles the extreme ATH filler loadings required for severe pollution environments.
Choose LSR for high-volume, highly automated production. It dominates the manufacturing of smaller insulators or complex molded components where rapid cycle times and zero-waste manufacturing are paramount. LSR transforms factory floors into clean, highly efficient, automated environments.
Take the following actionable steps to finalize your material selection:
Initiate small-scale prototyping to test material flow and curing times for your specific insulator geometry.
Request detailed Material Data Sheets (MDS) for specific ATH-loaded formulations to verify tracking resistance capabilities.
Consult with experienced tooling engineers to audit your current machinery compatibility before committing to a material path.
Reach out and contact our technical team to discuss custom formulation requirements for your specific grid applications.
A: HTV (High Temperature Vulcanized) is a solid, high-molecular-weight gum requiring milling and high-pressure molding or extrusion. LSR (Liquid Silicone Rubber) is a lower-molecular-weight, two-part liquid system pumped directly into molds, allowing for faster, automated processing.
A: HTV silicone rubber for insulators is widely used because it accommodates high levels of ATH fillers for tracking resistance, offers exceptional mechanical tear strength, supports both extrusion and molding, and is highly cost-effective for producing large, heavy-duty high-voltage insulators.
A: By weight, raw LSR is generally more expensive than HTV. However, LSR can yield a lower cost-per-part in high-volume production due to faster cycle times, reduced labor, and lower scrap rates.
A: HTV requires significantly higher injection pressures to force the highly viscous, solid rubber into the mold cavity, necessitating robust mold steel. LSR has a low viscosity, requiring much lower injection pressures, though it demands tighter mold tolerances to prevent leakage.
A: No. HTV requires heavy-duty stuffers and high-pressure injection molding machines, compression presses, or extruders. LSR requires specialized liquid dosing and pumping systems integrated with a compatible injection molding machine.
A: While HTV and LSR are used to manufacture the actual insulator sheds and housings, RTV (Room Temperature Vulcanizing) silicone is primarily used as a protective, hydrophobic coating applied to existing porcelain or glass insulators to improve their performance in polluted environments.
A: Both HTV and LSR offer excellent hydrophobicity and hydrophobic recovery. The performance depends more on the specific formulation, filler content, and manufacturer quality than on the base state (solid vs. liquid) of the rubber.
